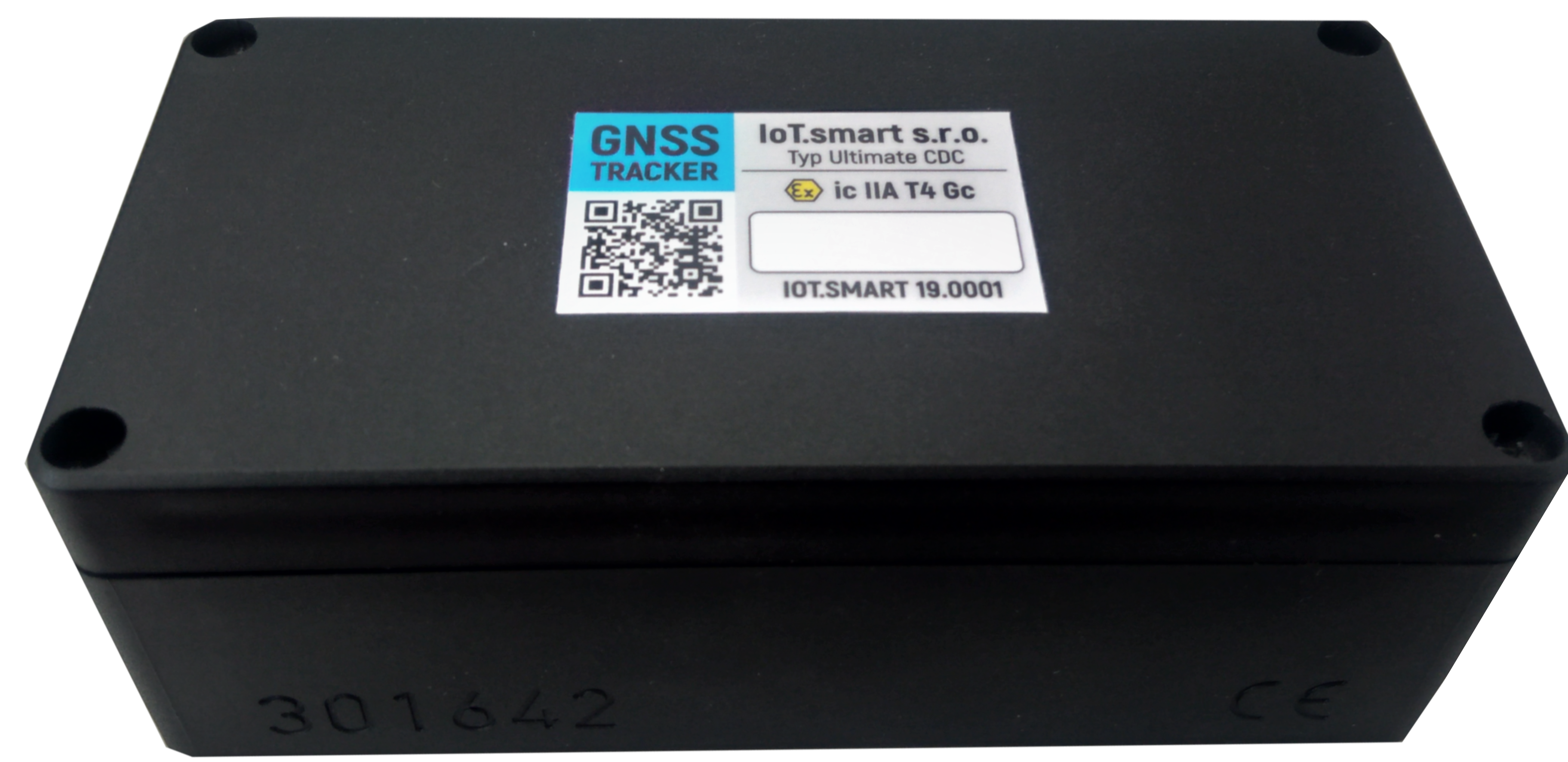

Ultimate CDC

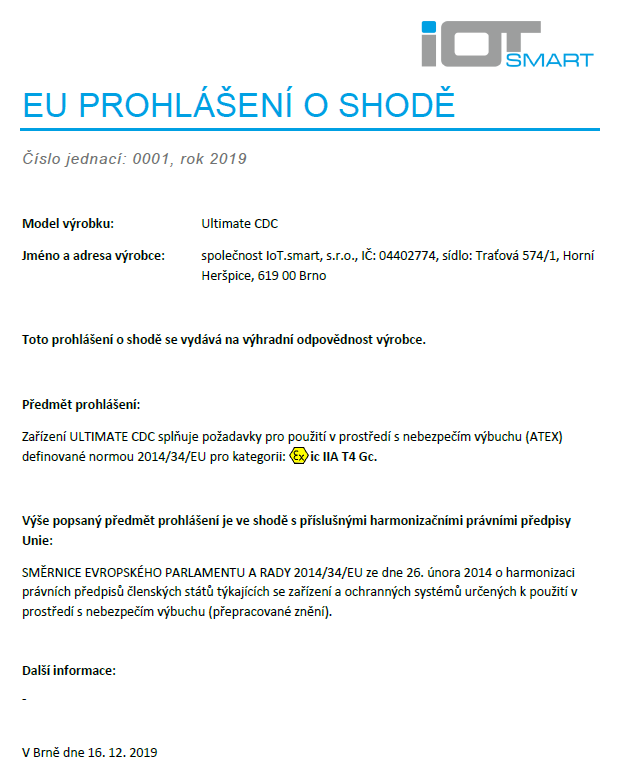

The Ultimate CDC is intended for use in potentially explosive atmospheres as defined by the standard
European Parliament Directive 2014/34:
– explosive environments
Description
– Category:
IIA T4 Gc
– special durable device for commercial usage in heavy industries
– GPS/GLONASS, remote configuration
– shake sensor, 3D accelerometer
– active antenna, temperature sensor
– energy efficiency, endurance, battery life for up to 10 years
– easy to install, protection (IP66)
Use cases
– logistics and containers tracking
– asset managementt
– rolling stocks
– heavy industries
– demanding environment
– theft prevention
– fleet management
– vehicles rental
– waste management
Technical Specification
Size 160mm x 80mm x 55mm Battery type battery module designed for explosive atmospheres Autonomy 6 to 10 years Geo - localisations high precision GNSS receiver Emissions class: Sigfox ready U0, RCZ1, CFU 868.13MHz/CFD 869.525MHz Protection IP66, IK07/IK08 box, NEMA 1, 4, 4X, 12, 13 Enclosure polycarbonate Operating temperature -30°C to +80°C Storing temperature -40°C to +80°C Data transmission Sigfox 25 mW/14 dBm, 162 dBm, 144 msg per day GNSS GPS/GLONASS - TTFF <15 s @ -130 dBm, <5s @ - 130 dBm, 1 s @ - 130 dBm GNSS technology SBAS (WAAS, EGNOS, MSAS, GAGAN), AIC, LOCUS, EASY, QZSS, AGPS GNSS protocol NMEA – RMC, VTG, CGA, GSA, GSV a GLL Shock sensor omnidirectional 3D accelerometer ±2g, ±4g, ±8g measurement range Antenna built-in GNSS and UNB Sigfox Installation integrated NdFeB magnets or double coated tape
